F03P
F03U
F04P
F04U
F07N
F07U
F09
Special Flight Control for Loitering Munition
Parameter
Power
Electric
Preferred UAV Weight
2-20 kg
Attitude Precision
0.3°
Heading Precision
0.3°
Position Precision
2.5m
Height Measuring Range
-500～10000m
Airspeed Measurment Range
0～100m/s
Voltage Monitoring Range
0～52V
Digital Output Channel
3
Serial Port
3 Channel RS232
Sbus Input Channel
1
Voltage Monitoring Channel
2
PWM Control Channel
9
Emergency Landing Site
100
Built-in Data Recorder
9 hr
Photographing Point
10000
Communication Interface
RC - 232C
Number of Routes
8 Routes (800 waypoints per route)
Power Supply Voltage
DC4.5-9.0V
Power Consumption
<2W
Weight
90g
Dimensions(mm)
81×50×20.5
Operating Temperature
-20℃～55℃
Storage Temperature
-40℃～85℃
High Cost Performance Flight Control
Parameter
Power
Electric
Preferred UAV Weight
2-20 kg
Attitude Precision
0.3°
Heading Precision
0.1°(Dual Antenna,2m Base Line)/0.2°(1m Baseline)/0.3°(Single Antenna,when maneuver flight)
Position Precision
1.5m / RTK:0.8cm
Height Measuring Range
-500～10000m
Airspeed Measurment Range
0～100m/s
Voltage Monitoring Range
0～52V
Digital Output Channel
3
Serial Port
3 Channel RS232
Sbus Input Channel
1
Voltage Monitoring Channel
2
PWM Control Channel
9
Emergency Landing Site
100
Built-in Data Recorder
9 hr
Photographing Point
10000
Communication Interface
RC - 232C
Number of Routes
8 Routes (800 waypoints per route)
Power Supply Voltage
DC4.5-9.0V
Power Consumption
<3W
Weight
100g
Dimensions(mm)
81×50×25.5
Operating Temperature
-20℃～55℃
Storage Temperature
-40℃～85℃
Supports Electric or Oil-Powered UAV
Parameter
Power
Electric or Oil
Preferred UAV Weight
20-80 kg
Attitude Precision
0.3°
Heading Precision
0.3°(Single Antenna,when maneuver flight)
Position Precision
2.5m
Height Measuring Range
-500～10000m
Airspeed Measurment Range
0～100m/s
Voltage Monitoring Range
0～52V
Acceleration Measurment Range
±8g
Angular Velocity Measurements Range
±500°/s
Servo Frequency
50Hz
Engine speed monitoring Range
0～20000RPM
Engine speed monitoring Channel
2
CAN communication Interface
1
Digital Output Channel
3(configurable as PWM)
Serial Port
4 Channel RS232 (RTK,mission load,etc.)
Sbus Input Channel
1
Voltage Monitoring Channel
2
PWM Control Channel
9
Emergency Landing Site
100
Built-in Data Recorder
9 hr
Photographing Point
10000
Communication Interface
RC - 232C
Number of Routes
8 Routes (800 waypoints per route)
Power Supply Voltage
DC4.5-9.0V
Power Consumption
<3W
Weight
130g
Dimensions(mm)
109×56×29.5
Operating Temperature
-20℃～55℃
Storage Temperature
-40℃～85℃
Networking Formation Flight Control
Parameter
Power
Electric or Oil
Preferred UAV Weight
20-80 kg
Attitude Precision
0.3°
Heading Precision
0.1°(Dual Antenna,2m Base Line)/0.2°(1m Baseline)/0.3°(Single Antenna,when maneuver flight)
Position Precision
Single Point Location:1.5m / RTK:0.8cm
Height Measuring Range
-500～10000m
Airspeed Measurment Range
0～100m/s
Voltage Monitoring Range
0～52V
Acceleration Measurment Range
±8g
Angular Velocity Measurements Range
±500°/s
Servo Frequency
50Hz
Engine speed monitoring Range
0～20000RPM
Engine speed monitoring Channel
2
CAN communication Interface
1
Digital Output Channel
3(configurable as PWM)
Serial Port
4 Channel RS232 (RTK,mission load,etc.)
Sbus Input Channel
1
Voltage Monitoring Channel
2
PWM Control Channel
9
Emergency Landing Site
100
Built-in Data Recorder
9 hr
Photographing Point
10000
Communication Interface
RC - 232C
Number of Routes
8 Routes (800 waypoints per route)
Power Supply Voltage
DC4.5-9.0V
Power Consumption
<3.5W
Weight
150g
Dimensions(mm)
109×56×32.5
Operating Temperature
-40℃～55℃
Storage Temperature
-40℃～85℃
Integrated Flight Control
Parameter
Attitude Precision
0.1°(GNSS valid)
Heading Precision
0.1°(2m Baseline)
RTK Position Precision
5cm + 1ppm
Velocity Accuracy
0.1m/s
Engine speed monitoring range
0～20000RPM
Height Measuring Range
-500～10000m
Airspeed Measurment Range
0～100m/s
Voltage Monitoring Range
0～52V
Acceleration Measurment Range
±8g
Gyroscope Measurement Range
±500°/s
Composite Navigation Output Interface
2
Satellite Output Interface
1
Second Pulse Signal
1
Engine speed monitoring channel
2
Voltage Monitoring Channel
2
CAN communication Interface
1
PWM Control Channel
9
Digital Output Channel
3(configurable as PWM)
Serial Port
4 channel RS232
Servo Frequency
50～200Hz
Communication Interface
RC - 232C
Sbus Channel
1 Input 1 Output
Emergency Landing Site
100
Built-in Data Recorder
9 hr
Photographing Point
10000
Number of Routes
8 Routes (800 waypoints per route)
Power Supply Voltage
DC4.5-9.0V
Power Consumption
<3W
Weight
160g
Dimensions(mm)
109×56×30.7
Operating Temperature
-40℃～85℃
Storage Temperature
-40℃～85℃
Integrated Flight Control
Parameter
Attitude Precision
0.1°(GNSS valid)
Heading Precision
0.1°(2m Baseline)
RTK Position Precision
5cm + 1ppm
Velocity Accuracy
0.1m/s
Engine speed monitoring range
0～20000RPM
Height Measuring Range
-500～10000m
Airspeed Measurment Range
0～100m/s
Voltage Monitoring Range
0～52V
Acceleration Measurment Range
±8g
Gyroscope Measurement Range
±500°/s
Composite Navigation Output Interface
2
Satellite Output Interface
1
Second Pulse Signal
1
Engine speed monitoring channel
2
Voltage Monitoring Channel
2
CAN communication Interface
2
PWM Control Channel
11
Digital Output Channel
3(configurable as PWM)
Serial Port
4 channel RS232 & 2 channel 422
Servo Frequency
50～200Hz
Communication Interface
RC - 232C
Sbus Channel
1 Input 1 Output
Emergency Landing Site
100
Built-in Data Recorder
9 hr
Photographing Point
10000
Number of Routes
8 Routes (800 waypoints per route)
Power Supply Voltage
DC4.5-9.0V
Power Consumption
<3W
Weight
165g
Dimensions(mm)
109×56×30.7
Operating Temperature
-40℃～85℃
Storage Temperature
-40℃～85℃

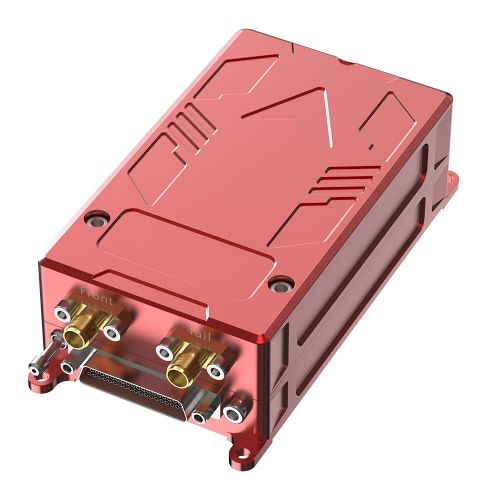

Military Quality with Ultra High Precision
Parameter
Dimensions(mm)
115×94.5×41.5
Operating Temperature
-40℃～85℃
Storage Temperature
-40℃～85℃
Attitude Precision
0.1°(GNSS valid)
Heading Precision
0.1°(2m Baseline)
RTK Position Precision
5cm + 1ppm
Velocity Accuracy
0.1m/s
Engine speed monitoring range
0～20000RPM
Height Measuring Range
-500～10000m
Airspeed Measurment Range
0～100m/s
Voltage Monitoring Range
0～52V (customized to amplify)
Acceleration Measurment Range
±16g
Gyroscope Measurement Range
±450°/s
Engine speed monitoring channel
4
Voltage Monitoring Channel
6
CAN communication Interface
1
PWM Control Channel
14
Digital Output Channel
3
Serial Port
6 channel RS232 & 4 channel 422
Servo Frequency
50～200Hz
Communication Interface
RC - 232C
Sbus Channel
1 Input 1 Output
Emergency Landing Site
100
Built-in Data Recorder
9 hr
Photographing Point
10000
Number of Routes
8 Routes (800 waypoints per route)
Power Supply Voltage
DC9.0-36.0V
Power Consumption
<10W
Weight
360g
