N03P
N03U
N04P
N04U
N100
RTK G03

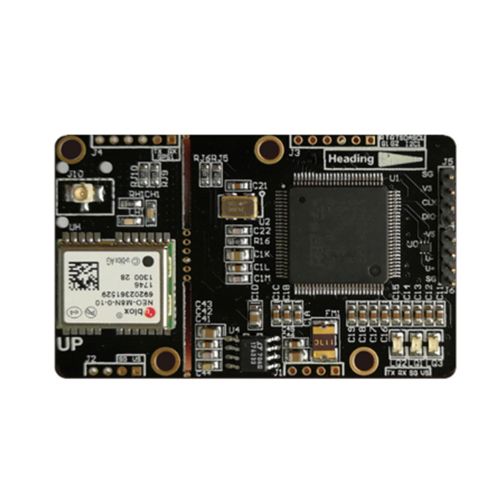

OEM Type Navigation Product
Parameter
Attitude Precision
0.3°
Heading Precision
0.3°
Position Precision
2.5m
Speed Precision
0.05m/s
Satellite Guidance Signal
B1I(BDS); L1 C/A(GPS); E1B/C(GALILEO); L1OF(GLONASS); L1C/A/L1 SAIF(QZSS)
Navigation Data Frequency
1~200 Hz
Gyroscope Measurment Range
±500°/s
Communication Interface
TTL
Power Supply Voltage
DC4.5-5.5V
Power Consumption
≤3W
Dimensions(mm)
56.3×35×4
Weight
≤12g
Operating Temperature
-20℃~+70℃
Storage Temperature
-45℃～85℃
Vibration
20~2000Hz，6.06g

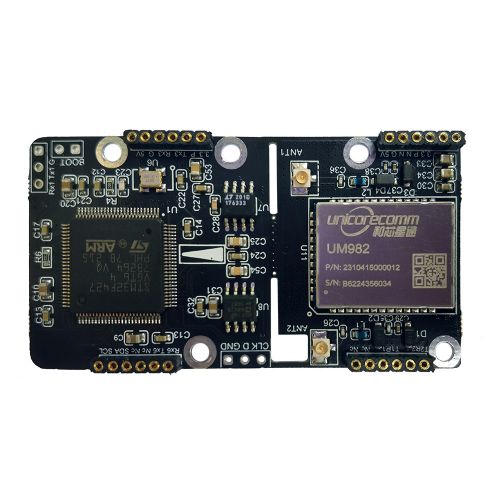

Dual-Antenna OEM Type Navigation
Parameter
Attitude Precision
0.3°
Position Precision
GNSS Valid（Single): Plane 1.5m Elevation 2.5m
Position Precision
GNSS Valid(RTK): Plane：0.8cm+1ppm Elevation：1.5cm+1ppm
Speed Precision
0.03m/s
Satellite Guidance Signal
B1I/B2I/B3I(BDS);L1 C/A/L2P(Y)/L2C/L5(GPS);E1/E5a/E5b(GALILEO); L1/L2(GLONASS); L1/L2/L5(QZSS)
Differential Correction Protocol
RTCM v3.3/3.2/3.1/3.0
Navigation Data Frequency
1~200 Hz
Communication Interface
2*TTL
Power Supply Voltage
DC4.5-5.5V
Power Consumption
≤3W
Dimensions(mm)
61×40×27
Weight
≤55g
Operating Temperature
-20℃~+70℃
Storage Temperature
-45℃～85℃
Heading Precision
Dual GNSS: 0.1°(2m Baesline) / Single GNSS: 0.3°

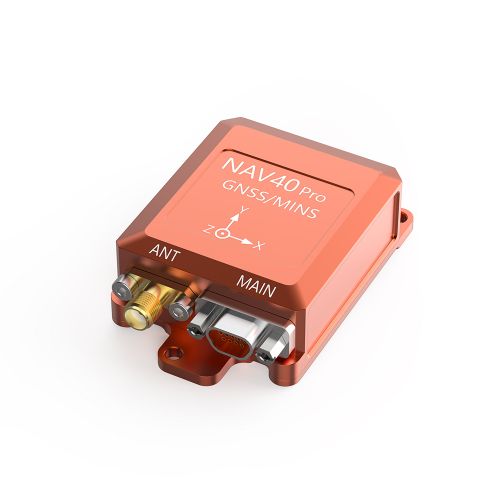

Pro Navigation
Parameter
Attitude Precision
0.3°
Heading Precision
0.3°
Position Precision
2.5m
Speed Precision
0.05m/s
Satellite Guidance Signal
B1I(BDS)；L1 C/A(GPS)；E1B/C(GALILEO)；L1OF(GLONASS)；L1C/A/L1 SAIF(QZSS)
Navigation Data Frequency
1~200 Hz
Communication Interface
1*RS232
Power Supply Voltage
DC4.5-16V
Power Consumption
≤3W
Dimensions(mm)
61×40×19
Weight
≤45g
Operating Temperature
-45℃～85℃
Storage Temperature
-45℃～85℃

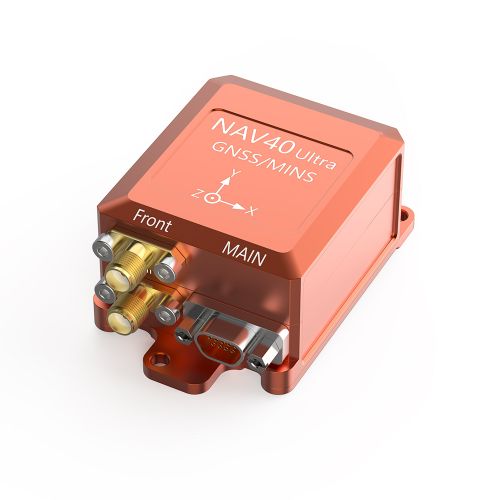

Ultra Navigation
Parameter
Heading Precision
Dual GNSS: 0.1°(2m Baesline) / Single GNSS: 0.3°
Attitude Precision
0.3°
Position Precision
GNSS Valid（Single): Plane 1.5m Elevation 2.5m
Position Precision
GNSS Valid(RTK): Plane：0.8cm+1ppm Elevation：1.5cm+1ppm
Speed Precision
0.03m/s
Satellite Guidance Signal
B1I/B2I/B3I(BDS);L1 C/A/L2P(Y)/L2C/L5(GPS); E1/E5a/E5b(GALILEO); L1/L2(GLONASS) ; L1/L2/L5(QZSS)
Differential Correction Protocol
RTCM v3.3/3.2/3.1/3.0
Navigation Data Frequency
1~200 Hz
Communication Interface
1*RS232+1*TTL
Power Supply Voltage
DC4.5-16V
Power Consumption
≤3W
Dimensions(mm)
61×40×27
Weight
≤55g
Operating Temperature
-45℃～85℃
Storage Temperature
-45℃～85℃
Prection Level
IP65
High Precision Navigation
Differential Product
Parameter
Position Accuracy
Single point L1：1.5m; Single point L1/L2：1.2m; SBAS：0.6m; DGPS：0.4m; RT- 2：1cm+1ppm
Storage capacity
Support 2G to 32G,Micro SD card storage
Data storage timespan
2G Micro SD card storage>20 hours
Data frequency
5Hz，（10Hz/20Hz selectable）
Communication distance
30km
Transmission power
100 ～ 1000mW
Airborne mobile station dimensions（mm）
93*52*29
Airborne mobile station weight
120 g
User communication interface
RS- 232C, Wireless WIFI
User communication interface
RS- 232C, Wireless WIFI
Data records interface
Micro USB ,Micro SD
Voltage range
7V ～ 36VDC
Power consumption
<5W

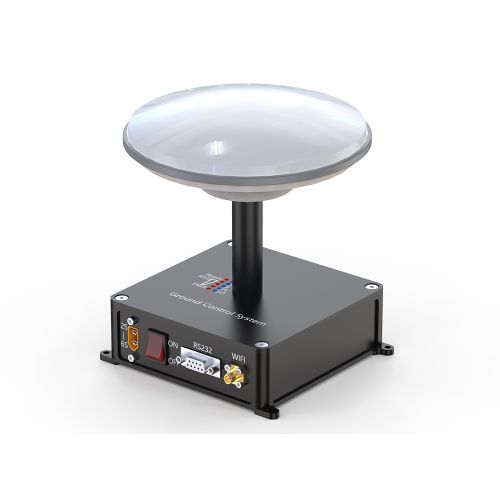

Ground base station Dimensions（mm）
141*125*176
Ground base station weight
990 g
