G22
G25

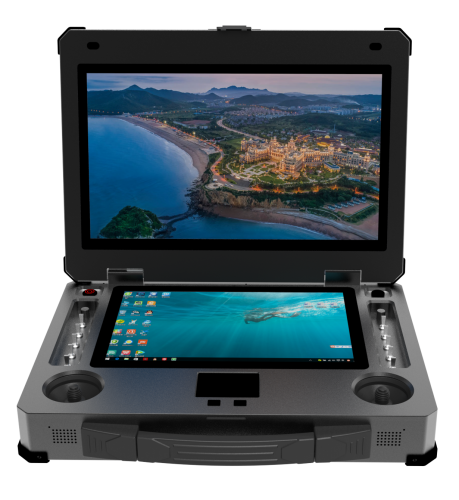

Dual Screen Ground Station
Parameter
System
Windows 10 / Linux
CPU
Intel I7-11 Processor
SSD Storage & RAM
8G&256GB（Customizable）
Wifi
2.4G / 5.8G Wifi，Bluetooth 4.0
Screen
15.6 inch（1920*1080）+12.1 inch（1280*800）
Touch screen
10 Spot Touch
External Interface
2*USB 3.0 / 1*HDMI / 1*LAN / 2*SMA-KF
Brightness
1000nit
Size
397*330*92 mm
Battery
16.8V 18AH
Working Hours
6-7 h
Weight
8 kg
Temperature
-20~60℃
Control Output
2*SBUS Output，20 Channels / USB-HID
Channels Type
3*Joysticks / 6*Third Gear Lever / 2*Knobs / 8*Buttons
Reserve Space
175*130*41 mm
Reserved Interface
6*RS232 / 2*USB / 1*RJ45
Reserved Power Supply
12V 3A

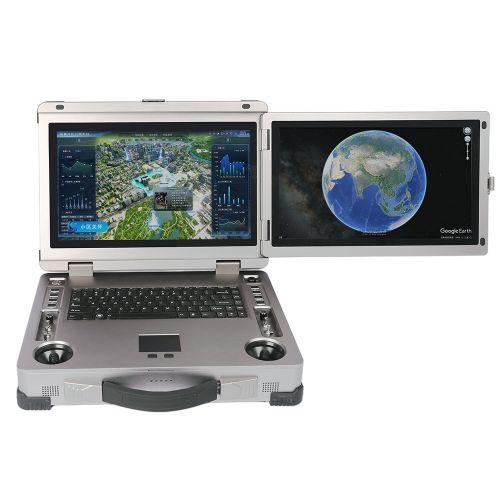

Dual Screen Ground Station
Parameter
System
Windows 10/Linux
CPU
Intel i7-11 processor
Graphics Card
Intel Iris Xe
SSD Storage & RAM
16G & 512GB
WIFI
2.4G / 5.8G WIFI, Bluetooth 4.0
Screen
2*15.6 inch, 1920*1080 Resolution
Touch Screen
10 Spot Touch
External Interface
2*USB3.0 / 1*HDMI / 1*LAN / Lin out / Mic in
Brightness
1000 nits
Size
416*330*100 mm
Battery
266 WH
Working Hours
4-6 h
Weight
10 kg
Temperature
-10~60℃
Control Output
20 Channels, 2*SBUS Output / USB-HID / Customized Agreement
Channels Type
3 * Joysticks / 6* Toggle Switches / 2 * Knobs / 8*Buttons
Reserve Space
175*80*41 mm
Reserved Interface
6*RS232 / 2*USB / 1*RJ45
Reserved Power Supply
12V 3A
