G30

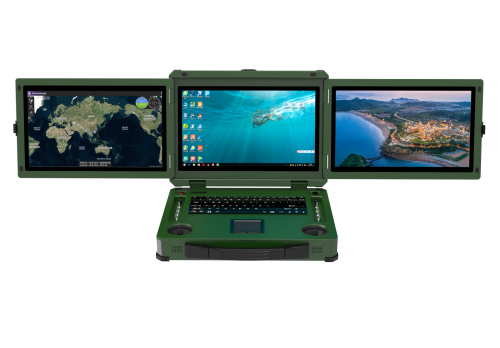

Tree Screen Ground Station
Parameter
System
Windows 10 / Linux
CPU
Intel I7-11 Processor
Graphics Card
Intel HD Graphics 620（Optional Independent Graphics Card）
SSD Storage & RAM
16G & 512GB（Customizable）
Wifi
2.4G / 5.8G Wifi, Bluetooth 4.0
Screen
3*15.6 inch Screen，1920*1080 Resolution
Power Display
Computer System Display / LED Battery Level
External Interface
2*USB 3.0 / 1*HDMI / 1*LAN / 2*SMA-KF
Brightness
1000ccd/m2
Size
416*330*118 mm
Battery
12.6V 18AH
Working Hours
4-5 h
Weight
11 kg
Temperature
-20~60℃
Control Output
2*SBUS output，16 thoroughfare/USB-HID
Channels Type
3*Joysticks / 8*Third Gear Lever / 2*Knobs / 2*Second Gear Lever
Remote Control Tuning
Upper Computer
Reserve Space
140*70*27 mm
